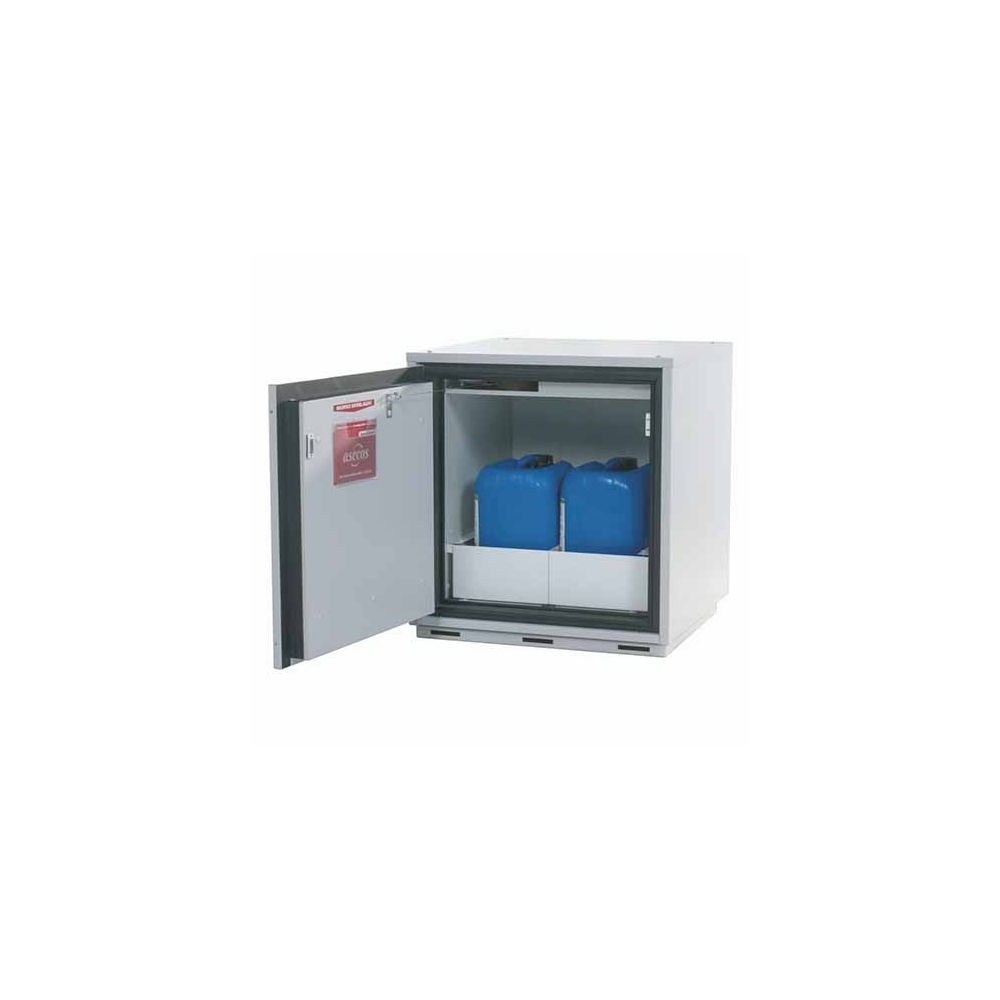

Safety Storage Under-Bench Cabinet UB-T-90 Model UB90.060.059.T
Model
- Type 90 safety storage under-bench cabinet
- Under-bench cabinet with wing door (left hinged)
- With cylinder locking and a locking state indicator
- Model line UB-LINE
- Model class UB-T-90
- Model UB90.060.059.T
- Type tested in accordance with EN 14470-1
- DIN EN 16121/16122
- GS certified
- CE compliant
- Dimensions exterior: W x D x H (mm) 593 x 574 x 600
- Dimensions interior: W x D x H (mm) 470 x 452 x 502
Colour
- Body colour light grey (RAL 7035)
- With a wing door in light grey (RAL 7035)
Interior equipment with
- 1 x Shelf, load capacity: 30 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x Perforated insert, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x Bottom collecting sump, capacity: 12 litres, powder-coated sheet steel, RAL 7035 light grey
Optional accessories are available for purchase separately. If you require a customised solution, please get in touch with our technical specialists by selecting the “Add to enquiry” button and using our enquiry form or by emailing [email protected].
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email [email protected], and our international sales team will gladly assist you through our traditional sales channels.
Description
Product Overview
Safety Storage Under-Bench Cabinets for Space-Efficient Integration – UB-LINE (Type 90/Type 30)
The UB-LINE model line (Type 90 / Type 30) comprises Safety Storage Under-Bench Cabinets designed for space-saving integration beneath fume cupboards, hazardous material workstations, or laboratory work surfaces. These cabinets are engineered to utilise the space beneath fume hoods efficiently, offering flexible storage solutions within limited work environments.
The UB-LINE product range supports a high degree of customisation. It is available in two heights, four widths, and three depths, allowing for optimal adaptation to varying user requirements and structural conditions.
Type 90 cabinets are tested for 90-minute fire resistance in accordance with EN 14470-1, making them suitable for the unrestricted storage and collection of flammable hazardous materials in work areas.
- Fire Resistance: Provides 90-minute fire resistance (Type 90), type-tested in accordance with EN 14470-1.
- GS Certification: Independently GS-tested to confirm product safety.
- Standards Compliance: Conforms to EN 16121 and EN 16122, which regulate mechanical safety, strength, and durability for laboratory furniture.
- Manufacturer Warranty: Backed by a special manufacturer’s warranty. [For further information, click here.]
- UL/ULC Certification: Various models within the UB-LINE series are tested in accordance with Underwriters Laboratories Standard UL/ULC 1275.
- Disposal Functionality: Select models are specifically designed for the storage and collection of flammable hazardous waste materials under fume cupboards.
Key Features and Benefits
Optimised for Fume Hood Integration
UB-LINE cabinets are engineered to fit precisely beneath fume cupboards, maximising available space without compromising safety or accessibility.
Flexible Configurations
Model variants are available in two heights, four widths, and three depths, providing maximum adaptability to diverse spatial and functional requirements.
Dual Certification for Global Applicability
UB-LINE cabinets are certified in accordance with both EN 14470-1 and UL standards, ensuring their suitability for international use in regulated environments.
Secure Locking System with Visual Indicator
All cabinet doors are equipped with a cylinder lock system, and a red/green status indicator provides a clear visual signal of the cabinet’s locked or unlocked status.
Advanced Drawer Functionality
- Drawers remain open in any position, allowing unobstructed access to stored materials.
- The full interior is visible, enhancing inventory management and safety.
- An optional second-level drawer enables efficient use of vertical space and is ideal for storing small containers.
Integrated Ventilation System
- Integrated air ducts (DN 50) are prepared for connection to technical exhaust systems to allow the extraction of hazardous vapours.
- This system prevents the accumulation of explosive atmospheres and reduces the risk of exposure to harmful substances.

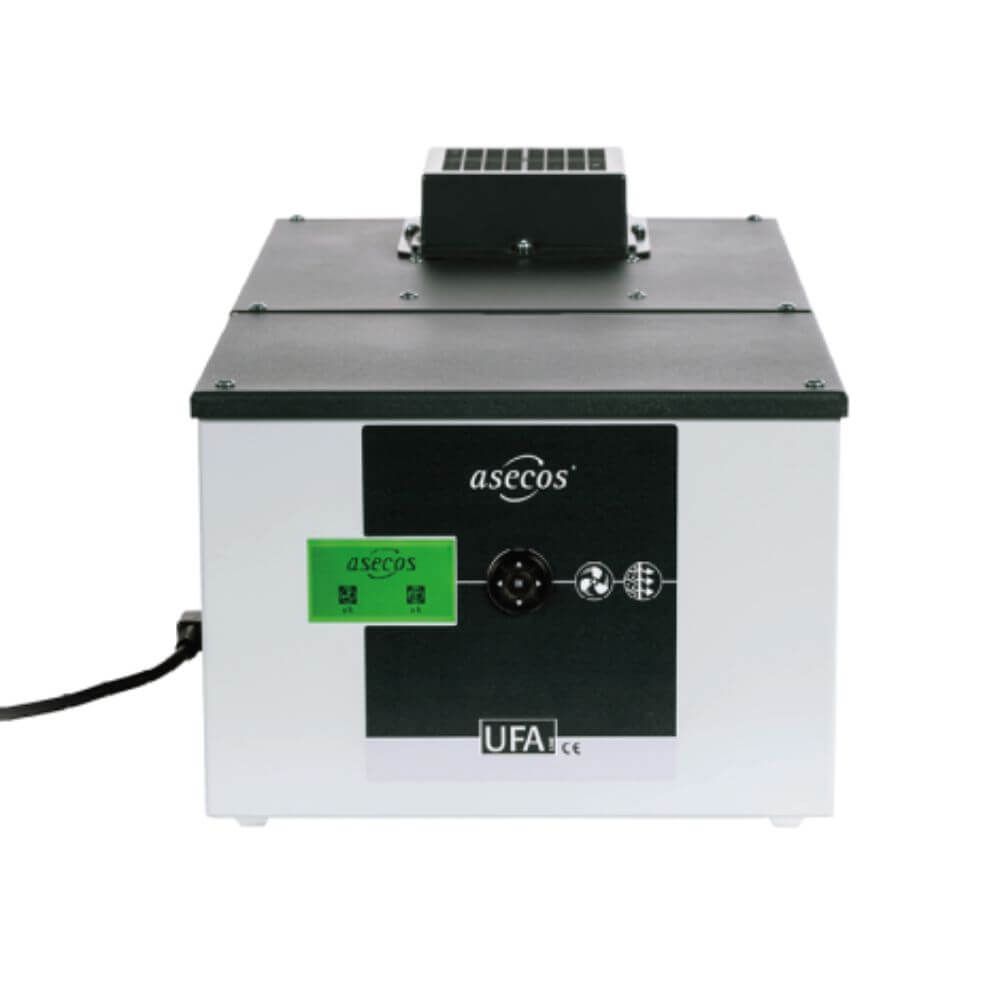

Recirculating Air Filtration (Optional)
- The recirculating air filter system for safety storage under-bench cabinets is specially engineered for the pressure ratios and volume flows of cabinets with low internal volume
- It can be mounted on a console or in a convenient housing unit.
- Click here for more information.
Wing Door Design for Full Visibility
- Wide-opening wing doors provide a clear view of the entire storage area, facilitating safe storage and retrieval of containers.
- When equipped with the optional extended interior height, cabinets can be retrofitted by the customer with waste disposal systems.
Mobility and Height Adjustability
- Optional castors with a plinth base allow for easy repositioning of the cabinet within the laboratory.
- Attachment covers enable height adjustment to ensure compatibility with various laboratory furniture systems.
Why Choose the UB-LINE Model
The UB-LINE series offers a space-efficient, highly customizable, and safety-compliant solution for under-bench storage of flammable hazardous substances. With its dual certification, advanced ventilation capabilities, ergonomic access features, and optional mobility enhancements, the UB-LINE range is ideally suited for modern laboratories and industrial environments where both performance and spatial efficiency are critical.
